价格：200

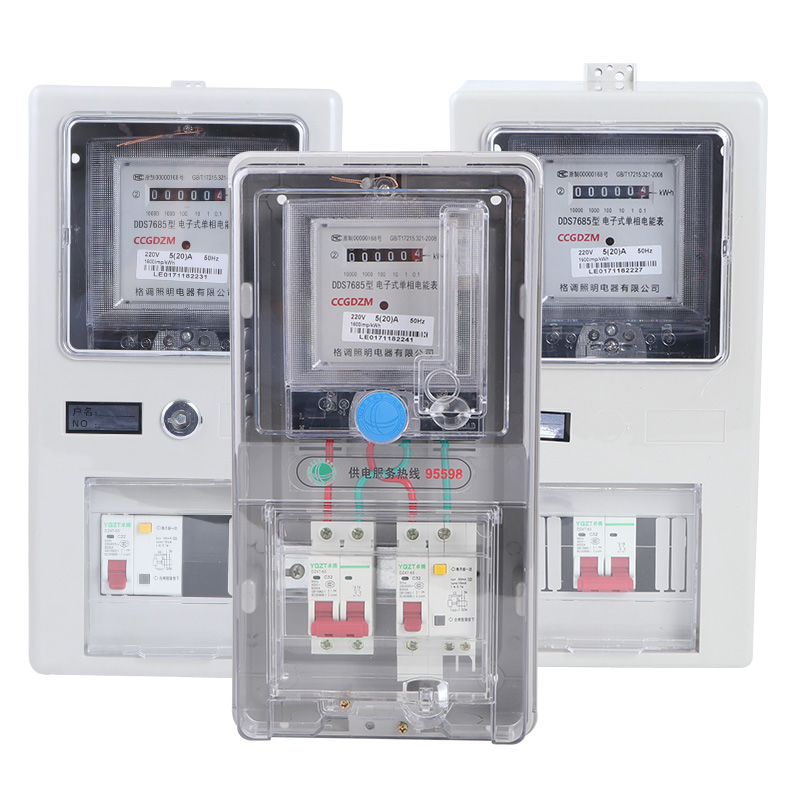

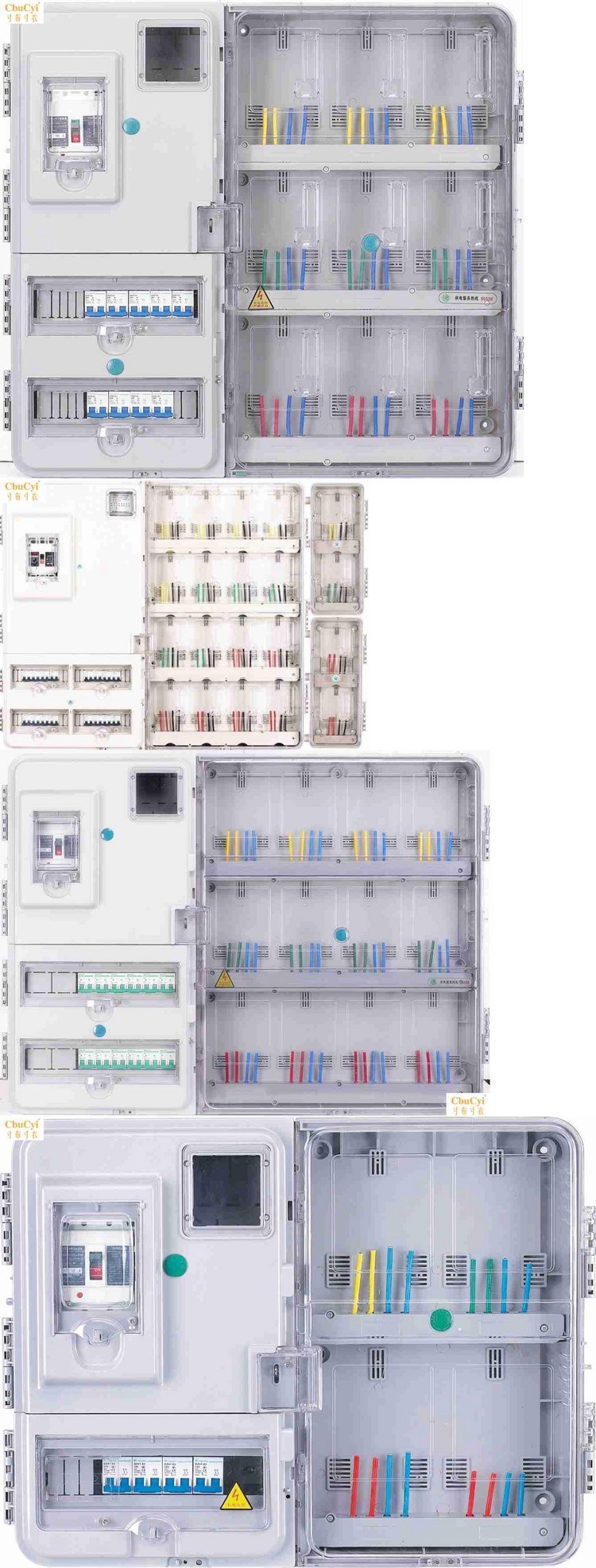

We will present the performance, safe operation methods, and technical parameters of XM series transparent anti-theft electricity meter box
ٹوٹ Use:
Main technical parameters
Load switchgear | Combined electrical cabinets | |
ٹوٹس جمع | 12 | 12 |
Rated frequency Hz | 50 | 50 |
Rated current رہ | 630 | 125 |
Rated short-circuit closing current جمع | 50 | 80 |
Return to the main resistor μΩ | ≤400 | ≤400 |
Rated insulation level جمع | ||
1 minute power frequency withstand voltage | Interval, relative to each other | fracture |
42 | 48 | |
Lightning shock withstand voltage | 75 | 85 |
The auxiliary loop is 1 minute power frequency withstand voltage جمع | 2 | 2 |
SF6 gas rated air pressure (20 degree gauge pressure) Mpa | 0.04 | 0.04 |
SF6 gas annual leakage rate | 1% | 1% |
Protection level | IP3X | IP3X |
رہccording to the circuit breaker
, according to the circuit breaker installation method is divided into moving type (handcart type) and fixed type (1) moving type or handcart type (represented by Y): it means that the main electrical components in the cabinet (such as: circuit breaker) are installed on the handcart that can be pulled out, DBX meter box, because the handcart cabinet has good interchangeability, so it can greatly improve the reliability of power supply, Shanghai DBX meter box, commonly used handcart types are: isolation handcart, metering handcart, Circuit breaker handcart, PT handcart, capacitor handcart and used variable handcart, etc., Taizhou DBX meter box, such as KYN28رہ-12. (2) Fixed type (denoted by G): It means that all electrical components in the cabinet (such as circuit breakers or load switches, etc.) are installed fixedly, and the fixed switchgear is relatively simple and economical, such as XGN2-10, GG-1رہ, etc.
